Introduction
The EV-206M cat GPS tracker is designed to attach comfortably to your pet’s collar, offering you peace of mind with the smallest cat tracker available. This real-time GPS cat tracker allows you to set up a virtual boundary using the geofence cat collar feature, sending you instant notifications via text or email if your cat leaves the safe zone. With advanced GPS, GSM, BLE 4.0, and Wi-Fi cat tracker technology, you can easily monitor your pet’s movements and quickly locate them, ensuring their safety at all times, wherever they may wander.
Waterproof IP67
Real Time Rracking
Long Battery Life
NBIOT / CATM
G-Seneor
Activity Monitoring
Data Logging: 60000locations
U-Blox GPS Technology
Firmware Upgrade Over The Air
Reply Map Link of Current Position
Geo-fencing alarm
Over speed alarm
Live Tracking
Low Battery Alarm
History Track
Mine Size
| Accessories & Package | |||
| Standard accessories | Type C USB charging cable | ||
| Bluetooth charging base | |||
| Silicon soft connector | |||
| Sim card opener (hard stick) | |||
| Quick start guide (user manual) | |||
| Packing box | |||
| Optional accessories | Charger: UK/AU/EU/US plug | ||
| Cat Collar | |||
| Packing information | Weight (including all accessories): 0.26KG/PCS QTY/CTN: 60PCS/CTN Carton weight: 17.4KG/CTN Carton size: 52cm*28.5cm*34cm |
||
| General specifications | Hardware |
| ① Dimension: 36mm*17mm/1.41in*0.67in ② Weight: 19g / 0.67oz / 0.041lb ③ Battery: Rechargeable, 3.7V,240mAh ④ Charging voltage: 5V DC ⑤ Battery life: 2~8 days ⑥ Waterproof:IP67 |
① MCU: Nordic NRF52840 ② Sensor: motion sensor ③ Charging: 4 Pin-Magnet ④ SIM card slot: Nano Sim ⑤ Flash memory: 16 MB ⑥ WIFI: 802.11 b/g/n, 2.4G ⑦ BLE: BT5.0 LE |
| 4G LTE-M/NB | Hardware | ||
| Supported Bands: ① LTE-M1: B1/B2/B3/B4/B5/B8/B12/B13/B14/ B18/B19/B20/B25/B26/B27/B28/B66/B85* ② LTE-NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B26/B28/B66/B71/B85* ③ Antenna: Built-in laser curved antenna. |
① GPS chipset: u-blox MAX M8 ② Support: GPS and Glonass ③ Receiver frequency: 1575.42MHz ④ Cold start: approx 26s Warm start: approx 2s Hot start: approx 1s ⑤ Antenna: Build-in ceramic antenna |
||
Fuction Scenario

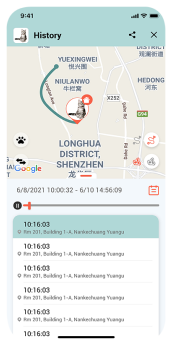

Location History
Scenario: Cats typically have their own regular routes but may occasionally wander far from home. With the location history feature, you can review your cat's activity trails over the past few days, understanding if it has ventured into areas it shouldn't, such as a neighbor's yard or deep into a forest.

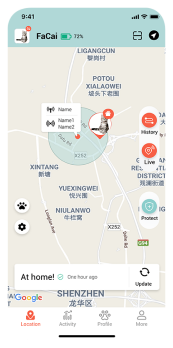

Real Time GPS Tracking
Scenario: Cats are often more independent and may go out alone. If your cat doesn't come home at its usual time, realtime GPS tracking allows you to see its exact location immediately. This feature is crucial for locating your cat quickly, especially at night or in bad weather conditions.

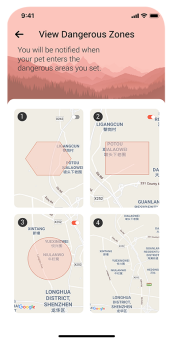

Geo-fencing Alarm
Scenario: You can set up a safe activity area around your home, like a few blocks. If your cat exceeds this area, you'll receive an alert. This helps prevent your cat from getting lost or entering potentially dangerous places.

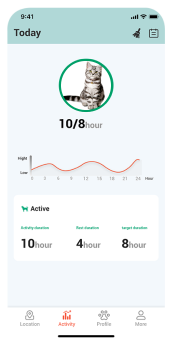

Activity Monitoring
Scenario: Activity monitoring lets you track your cat's daily exercise. If you notice a decrease in activity, it could indicate health issues or discomfort. You can then take action and consult a veterinarian if necessary.

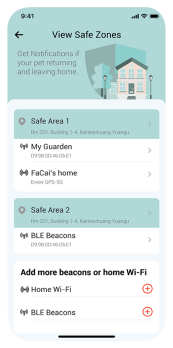

Home Wi-Fi and Beacon
Scenario: When your cat is at home, the tracker can switch to WiFi mode to save battery life. Additionally, by placing beacons around your home, you can precisely locate your cat within the house. This is particularly useful for cats that like to hide in various spots.

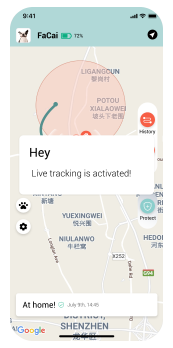

Live Tracking
Scenario: If you're traveling with your cat or moving to a new home, live tracking helps you monitor its realtime location, ensuring it doesn't get lost in unfamiliar environments. This is especially valuable for cats that enjoy exploring new surroundings.
